125Khz RFID spoofing

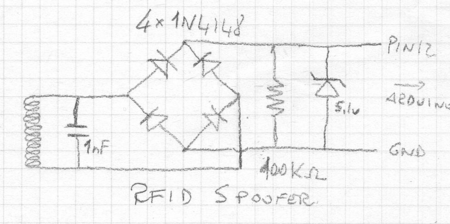

Circuit schematics

List of materials:

• an antenna (there are many 125khz antennas on e-bay)
• Capacitor 1nF (maybe this value needs some tuning for the best resonance of the antenna)
• 4 diodes 1N4148
• Resistor 100Kohm
• zener diode 5.1v

Usage

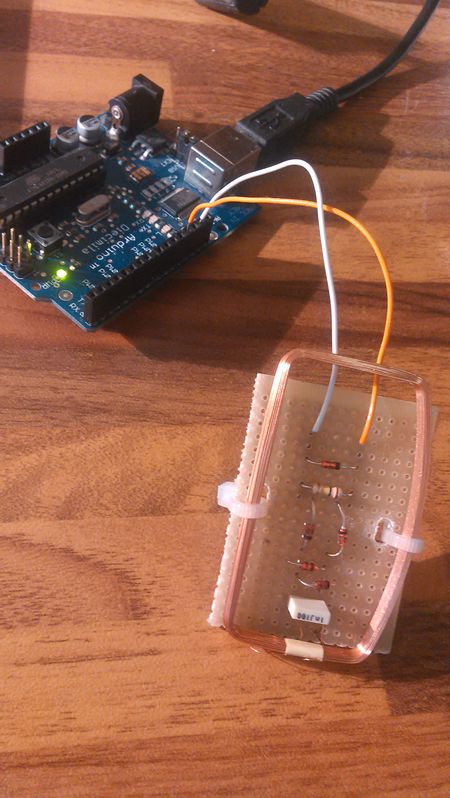

Connect the two terminals of the circuit to GND and pin 12.

Compile and Load the code herebelow.

Open a serial terminal (9600 bit/s), e.g.

   screen /dev/ttyUSB0 9600

Type in 10 hexadecimal digits (characters are not echoed). (the code computes all the parity bits, both horizontal and vertical).

Code

#define coil_pin 12

char data[10];
int data_count =0;

unsigned char spoofed_card[64];

void setup()
{
        pinMode(coil_pin, OUTPUT);
        digitalWrite(coil_pin, LOW);
        Serial.begin(9600);
}

void loop()
{
        if(Serial.available()){
                char key = Serial.read();
                if(key != '\0') {
                        data[data_count] = key;
                        if(data_count == 9){
                                spoofcard();
                                data_count = 0;
                        }
                        else
                                data_count ++;
                }
        }
}

int hexchar(char hexa)
{
  if (hexa >= '0' && hexa <= '9')
    return hexa - '0';
  else if (hexa >= 'A' && hexa <= 'F')
    return hexa - 'A' + 10;
  else if (hexa >= 'a' && hexa <= 'f')
    return hexa - 'a' + 10;
  else
    return 0;
}

//http://www.priority1design.com.au/em4100_protocol.html
void compute_em4100(char *in, unsigned char *out) {
  int i;
  int j;
  int parity;
  static const int prefix = 9;
  for (i = 0; i < prefix; i++)
    out[i] = 1;
  for (i = 0, j = prefix; i < 10; i++, j += 5) {
    int raw_data = hexchar(data[i]);
    out[j] = !!(raw_data & 8);
    out[j + 1] = !!(raw_data & 4);
    out[j + 2] = !!(raw_data & 2);
    out[j + 3] = !!(raw_data & 1);
  }
  for (i = 0 + prefix; i < 50 + prefix; i += 5) {
    for (parity = 0, j = 0; j < 4; j++)
      parity += spoofed_card[i + j];
    spoofed_card[i + j] = parity & 1;
  }
  for (i = 0 + prefix; i < 4 + prefix; i++) {
    for (parity = 0, j = 0; j < 50; j += 5)
      parity += spoofed_card[i + j];
    spoofed_card[i + j] = parity & 1;
  }
  out[63] = 0;
}

void spoofcard(){
        compute_em4100(data, spoofed_card);
        for(int h = 0; h < 50; h++)
                spoofnow();
}

void send_manchester(int clock_half, int signal)
{
        int man_encoded = clock_half ^ signal;

        if(man_encoded == 1)
                digitalWrite(coil_pin, LOW);
        else
                digitalWrite(coil_pin, HIGH);
}

void spoofnow(){
        for(int i = 0; i < 64; i++)
        {
                send_manchester(0, spoofed_card[i]);
                delayMicroseconds(256);
                send_manchester(1, spoofed_card[i]);
                delayMicroseconds(256);
        }
}
