Arduino NANO + 19 resistors = A DDS signal generator
Jump to navigation
Jump to search

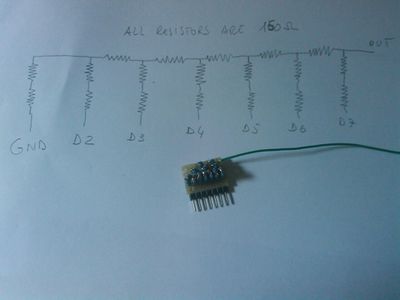

This is the schematics and the prototype...
It generates signals (very nice to 1300 hz, acceptable to 10khz) using a N - 2N resistor ladder DAC.

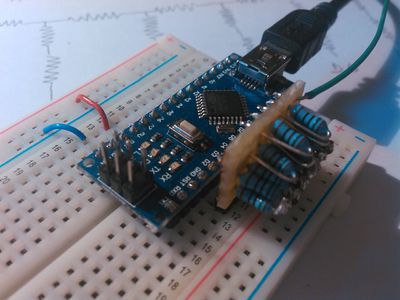

It has been designed to be plugged on 7 contiguous pins (GND, D2, ... , D7).
Using 150ohm resistors its internal resistance of 150ohm. It generates 0 to Vcc (actually 63/64 of Vcc) waves on an open circuit, 0 to Vcc/2 on a 150 ohm Load
Here is the code generatorhz.tgz The source code of the Arduino's sketch:
/* Arduino Direct Digital Synthresis (DSS) Signal generator */
/* Input:
* S100 -> Sin wave 100 hz
* T1000 -> Triangular 1000 hz
* U50 -> Rump UP 50hz
* D123.56 -> Rump DOWN 123.56hz
* Q100 -> Square 100hz
* %30 -> set the duty cycle to 30 % (for square waves only).
*/
uint8_t WAVE_MAP[4][128]= {{
0x1F,0x21,0x22,0x24,0x25,0x27,0x28,0x2A,0x2B,0x2D,0x2E,0x30,0x31,0x32,0x33,0x35,
0x36,0x37,0x38,0x39,0x3A,0x3A,0x3B,0x3C,0x3D,0x3D,0x3E,0x3E,0x3E,0x3F,0x3F,0x3F,
0x3F,0x3F,0x3F,0x3F,0x3E,0x3E,0x3E,0x3D,0x3D,0x3C,0x3B,0x3A,0x3A,0x39,0x38,0x37,
0x36,0x35,0x33,0x32,0x31,0x30,0x2E,0x2D,0x2B,0x2A,0x28,0x27,0x25,0x24,0x22,0x21,
0x1F,0x1E,0x1C,0x1B,0x19,0x18,0x16,0x15,0x13,0x12,0x10,0x0F,0x0E,0x0C,0x0B,0x0A,
0x09,0x08,0x07,0x06,0x05,0x04,0x03,0x03,0x02,0x01,0x01,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x01,0x02,0x03,0x03,0x04,0x05,0x06,0x07,0x08,
0x09,0x0A,0x0B,0x0C,0x0E,0x0F,0x10,0x12,0x13,0x15,0x16,0x18,0x19,0x1B,0x1C,0x1E
},{
0x1F,0x20,0x21,0x22,0x23,0x24,0x25,0x26,0x27,0x28,0x29,0x2A,0x2B,0x2C,0x2D,0x2E,
0x2F,0x30,0x31,0x32,0x33,0x34,0x35,0x36,0x37,0x38,0x39,0x3A,0x3B,0x3C,0x3D,0x3E,
0x3F,0x3E,0x3D,0x3C,0x3B,0x3A,0x39,0x38,0x37,0x36,0x35,0x34,0x33,0x32,0x31,0x30,
0x2F,0x2E,0x2D,0x2C,0x2B,0x2A,0x29,0x28,0x27,0x26,0x25,0x24,0x23,0x22,0x21,0x20,
0x1F,0x1E,0x1D,0x1C,0x1B,0x1A,0x19,0x18,0x17,0x16,0x15,0x14,0x13,0x12,0x11,0x10,
0x0F,0x0E,0x0D,0x0C,0x0B,0x0A,0x09,0x08,0x07,0x06,0x05,0x04,0x03,0x02,0x01,0x00,
0x00,0x00,0x01,0x02,0x03,0x04,0x05,0x06,0x07,0x08,0x09,0x0A,0x0B,0x0C,0x0D,0x0E,
0x0F,0x10,0x11,0x12,0x13,0x14,0x15,0x16,0x17,0x18,0x19,0x1A,0x1B,0x1C,0x1D,0x1E
}, {
0x00,0x00,0x00,0x01,0x01,0x02,0x02,0x03,0x03,0x04,0x04,0x05,0x05,0x06,0x06,0x07,
0x07,0x08,0x08,0x09,0x09,0x0A,0x0A,0x0B,0x0B,0x0C,0x0C,0x0D,0x0D,0x0E,0x0E,0x0F,
0x0F,0x10,0x10,0x11,0x11,0x12,0x12,0x13,0x13,0x14,0x14,0x15,0x15,0x16,0x16,0x17,
0x17,0x18,0x18,0x19,0x19,0x1A,0x1A,0x1B,0x1B,0x1C,0x1C,0x1D,0x1D,0x1E,0x1E,0x1F,
0x1F,0x20,0x20,0x21,0x21,0x22,0x22,0x23,0x23,0x24,0x24,0x25,0x25,0x26,0x26,0x27,
0x27,0x28,0x28,0x29,0x29,0x2A,0x2A,0x2B,0x2B,0x2C,0x2C,0x2D,0x2D,0x2E,0x2E,0x2F,
0x2F,0x30,0x30,0x31,0x31,0x32,0x32,0x33,0x33,0x34,0x34,0x35,0x35,0x36,0x36,0x37,
0x37,0x38,0x38,0x39,0x39,0x3A,0x3A,0x3B,0x3B,0x3C,0x3C,0x3D,0x3D,0x3E,0x3E,0x3F
}, {
0x3F,0x3E,0x3E,0x3D,0x3D,0x3C,0x3C,0x3B,0x3B,0x3A,0x3A,0x39,0x39,0x38,0x38,0x37,
0x37,0x36,0x36,0x35,0x35,0x34,0x34,0x33,0x33,0x32,0x32,0x31,0x31,0x30,0x30,0x2F,
0x2F,0x2E,0x2E,0x2D,0x2D,0x2C,0x2C,0x2B,0x2B,0x2A,0x2A,0x29,0x29,0x28,0x28,0x27,
0x27,0x26,0x26,0x25,0x25,0x24,0x24,0x23,0x23,0x22,0x22,0x21,0x21,0x20,0x20,0x1F,
0x1F,0x1E,0x1E,0x1D,0x1D,0x1C,0x1C,0x1B,0x1B,0x1A,0x1A,0x19,0x19,0x18,0x18,0x17,
0x17,0x16,0x16,0x15,0x15,0x14,0x14,0x13,0x13,0x12,0x12,0x11,0x11,0x10,0x10,0x0F,
0x0F,0x0E,0x0E,0x0D,0x0D,0x0C,0x0C,0x0B,0x0B,0x0A,0x0A,0x09,0x09,0x08,0x08,0x07,
0x07,0x06,0x06,0x05,0x05,0x04,0x04,0x03,0x03,0x02,0x02,0x01,0x01,0x00,0x00,0x00
}};
#define HZ1 81.2
const char stype[] = "STUDQ";
uint32_t phase_accumulator, phase_step;
uint8_t type;
uint8_t next_in = 0;
uint8_t dp = 0;
uint8_t ndec = 0;
float step_in;
uint8_t DDS_OUT_MAP[128];
uint8_t table_index;
uint8_t duty_cycle = 50;
void create_out_map( void ){
uint8_t i;
if (type == 4) {
uint8_t dmax = 128 * duty_cycle / 100;
for (i=0;i<128;i++)
DDS_OUT_MAP[i] = i < dmax ? 0xFC : 0;
} else {
for (i=0;i<128;i++)
DDS_OUT_MAP[i] = WAVE_MAP[type][i] << 2;
}
}
void setup() {
pinMode(2, OUTPUT);
pinMode(3, OUTPUT);
pinMode(4, OUTPUT);
pinMode(5, OUTPUT);
pinMode(6, OUTPUT);
pinMode(7, OUTPUT);
Serial.begin(115200);
Serial.println("Ready");
}
void serialEvent() {
while(Serial.available()) {
uint8_t inChar = Serial.read();
// Serial.println(inChar);
if (inChar == '\n' || inChar == '\r') {
next_in = 0;
if (type == 0xFF) {
type = 4;
duty_cycle = step_in;
if (duty_cycle < 0) duty_cycle = 0;
if (duty_cycle > 100) duty_cycle = 100;
create_out_map();
Serial.print("duty_cycle ");
Serial.print(duty_cycle);
Serial.println('%');
} else {
create_out_map();
for (; ndec > 0; ndec--)
step_in /= 10.0;
phase_step = (step_in * HZ1);
//Serial.print(phase_step);
//Serial.print(" ");
Serial.print(stype[type]);
Serial.print(" ");
Serial.print(step_in, 2);
Serial.println("hz");
}
dp = 0;
ndec = 0;
} else if (next_in == 0) {
type = 0;
step_in = 0;
if (inChar == 'T' || inChar == 't') type = 1;
if (inChar == 'U' || inChar == 'u') type = 2;
if (inChar == 'D' || inChar == 'd') type = 3;
if (inChar == 'Q' || inChar == 'q') type = 4;
if (inChar == '%') type = 0xFF;
next_in++;
} else if (inChar == '.') {
dp = 1;
} else if (inChar >= '0' && inChar <= '9') {
step_in = (step_in * 10) + (inChar - '0');
if (dp) ndec++;
next_in++;
}
}
}
void loop() {
phase_accumulator=phase_accumulator + phase_step;
table_index=(phase_accumulator)>>16;
table_index=table_index>>1;
PORTD = (PORTD & 0x3) | (DDS_OUT_MAP[table_index]);
}
Once the code has been loaded, open a serial terminal at 115200bps (e.g. the Arduino IDE's Serial Monitor or type 'screen /dev/ttyUSB0 115200').
Type:
- S100 to generate a sinusoidal signal at 100hz
- T1000 triangular wave 1000hz
- U50 ramp up at 50 hz
- D2000 ramp down at 2000hz
- Q1234.56 Square wave @ 1234.56hz
- %30 change the duty cycle to 30% (only for square waves)
This prototype generates nice smooth signals up to 1300hz, the shape is still clear @ 5Khz, then the signal takes less and less sample per period... around 80Khz all signals are square waves.
